Topaire Air Conditioner

WATER COOLED PACKAGED CHILLERS WITH SCROLL COMPRESSORS
12 TO 62 TONS

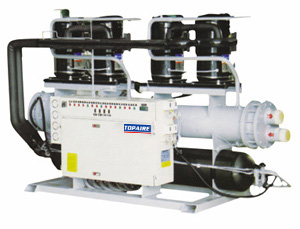

TWCS Series R22 & R407c
50/60 Hz

STANDARD FEATURES
Size Range

Compressor

Scroll hermetic type operating type operating at 2950 RPM (50Hz); 3550 RPM (60Hz).
High EER, low sound power level and high reliability.
Controlled orbit with floating seals and advance scroll geometry.
No-contact scroll design and 100% motor cooled by suction gas.
Thermostat fitted to prevent thermal overload.
Capability of 50% tandem unloading.

Evaporator

Vessels constructed in accordance to the ASME CODES Section VIII Division I for unfired pressure vessels.
Topaire high efficiency inner finned tubes design for compactness and weight reduction.
250 psig on refrigerant side design pressure.
150 psig on water side design pressure.
Approval Stamp available from JKKP (Malaysia), UDT (Poland), BPA, China State Bureau of Quality and Technical Supervision of the People's Republic of China and ASME.
1" thick PE foam closed cell insulation.

Condenser

Vessels constructed in accordance to the ASME CODES Section VIII Division I for unfired pressure vessels.
Removable heads and interchangeable end-for-end for job flexibility.
3/4" OD seamless, extended surface copper tubes.
300 psig on refrigerant side design pressure.
150 psig on water side design pressure.
Approval Stamp available from JKKP (Malaysia), UDT (Poland), BPA, China State Bureau of Quality and Technical Supervision of the People's Republic of China and ASME.

Electrical/Control

Reliable microprocessor based controller with electromechanical system is standard for all models.
Chilled water pump control.
