AIR-COOLED SPLIT SYSTEM
MODULAR AND SINGLE CONDENSING UNIT |
|
TACCS-B SERIES  TACCR-B SERIES THEB, TEB, TEBR SERIES TVEB SERIES
 |

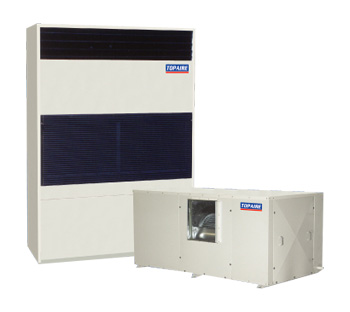

Air-Cooled Condensing Units
The TACCS & TACCR series with new features is suitable for hotel, office, hospitals, schools, factory abd supermarket applications.
The low noise and compact series are completely leak tested, evacuated, dehydrated and charged with dry nitrogen to maintain system "dryness"
prior to field piping connections.
EFFICIENT CONDENSER COIL
Staggered row of 3/8" OD inner groove tubes with 25 to 30% more surface area guarantee better heat transfer.
Mechanically expanded into die-formed corrugated aluminum fins.
Integral subcooling circuit to maximize efficiency.
Leak and pressure tested to 450 psig.
CASING
Constructed from heavy gauge galvanized steel.
Panels are painted with epoxy-acrylic electro deposition paint for excellent finish, weatherability and corrosion resistance.
Ducted Evaporator Blower Unit
The ducted evaporator-blower units; each consist of an evaporator coil, a centrifugal forward-curved blower fan complete with drive package and filters
and enclosed in a single fibreglass insulated rigid steel cabinetry; are completely factory packaged to provide greater flexibility to the building owners, consultants,
architects and installers.
EFFICIENT EVAPORATOR COIL
Independent thermal expansion valve with external equalizer for better refrigerant control and wider load condition.
Leak and pressure tested to 450 psig.
Evacuated, dehydrated and charged with dry nitrogen.
CASING
Constructed of electro galvanized steel sheet and insulated with 1/2" thick x 1 1/2 lb per cu.ft linacoustic fiberglass.
Aesthetically coated with epoxy-acrylic electro deposition paint to provide excellent finish, weatherability and corrosion resistance.
Removable panels on the left and right hand side of the unit to provide access to critical parts and components.
|
|
|
 |
