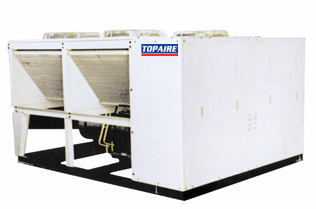

AIR COOLED PACKAGED CHILLERS WITH SCROLL COMPRESSOR 10 THROUGH 70 TONS
TACS Series R22 & R407c 50Hz
STANDARD FEATURES Size Range
10 models from 10 to 70 tons.
Standard version available.
Rated with HCFC-22 and HFC-407C.
Compressor
Scroll hermetic type operating at 2950 RPM (50Hz).
High EER, low sound power level, best sound quality and high reliability.
Controlled orbit with floating seals and advanced scroll geometry.
No-contact scroll design and 100% motor cooled by suction gas.
Thermostat fitted to prevent thermal overload.
Capability of 50% tandem unloading.
Evaporator
Vessels constructed in accordance to ASME CODES Section VIII Division I for unfired pressure vessels.
Topaire high efficiency inner-fin tubes design for compactness and weight reduction.
300 psig on refrigerant side design pressure.
200 psig on water side design pressure.
Approval Stamp available from JKKP (Malaysia), UDT (Poland), BPA, China State Bureau of Quality and Technical Supervision of People's Republic of China and ASME.
1" thick PE foam closed cell insulation.
Air Side Condenser
Inner ridged copper tubes with aluminium fins.
450 psig test pressure for condenser coils.
Standard unit fans - direct drive at 950 RPM.
All fan motors are designed for outdoor installations.
Fan cycling is standard for all units. Fan speed control is an option for low ambient application.
Electrical/Control
Reliable microprocessor based controller with electromechanical system is standard for all models.
