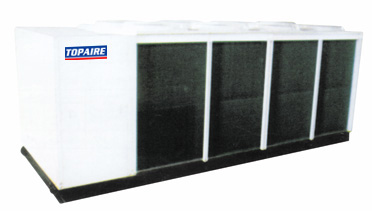

AIR COOLED PACKAGED CHILLERS WITH HORIZONTAL SCREW COMPRESSOR
40 THROUGH 415 TONS
TAAC Series R22 & R407c
50Hz
Horizontal Screw Compressor
STANDARD FEATURES
Size Range
  • 19 models from 40 to 415 tons (50Hz)
  • Rated with HCFC-22.
Compressor
  • Semi-hermetic rotary screw type at 2950 RPM.
  • Infinite variable slide valve unloading for precise load matching.
  • Compressor cycling for maximum efficiency.
Evaporator
  • Vessels constructed in accordance to the ASME CODES for unfired pressure vessels, the JKKP (the Malaysian DOSH), the Polish and the Chinese authorities.
  • Topaire high efficiency inner finned tubes design for compactness and weight reduction.
  • 300 psig on refrigerant side design pressure.
  • 200 psig on water side design pressure.
  • Independent refrigerant circuits.
Condenser
  • Seamless copper tubes with aluminum fins.
  • 450 psig test pressure for condenser coils.
  • Low noise fans - direct driven at 950 RPM at 50Hz.
  • All fan motors are suitable for outdoor installations.
  • Copper, hydrophilic and electro-tinned coils are available options.
Electrical/Control
  • Advanced microcomputer control for all models.
  • Chilled water pump control.
  • Separate power and control panels.
