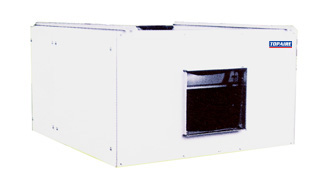

CHILLED WATER & DX FANCOIL UNIT (BELT DRIVEN) TCC SERIES
800 CFM THRU 4000 CFM
INTRODUCTION
Topaire known throughout the industry for reliability and performance offers its line of 'CC' ducted belt driven comfort air conditioners.
It features compact, attractive, easy accessible design and other advantages which assure you of a model to best suit your demand. It can
be designed for both concealed and exposed ceiling hung installation. Six models (2 to 12 tons of cooling) are designed to deliver 800 to 4000 cfm to satisfy various cooling requirement with a total static
pressure capability of up to 2"wg. Multiple units may be used for larger requirements. Every aspect of construction is under close supervision by experience quality
control personnel to ensure high performance and reliable finished products.
CASING
All steel parts are coated with epoxy-acrylic electro-deposition (ED) paint which gives excellent finishing, weatherability and salt-spray test of minimum 840 hours. Before ED coating, the part undergoes
a complete pretreatment process which involves degreasing, phosphating and rinsing with deionized water.
MOTOR AND DRIVE PACKAGE
3 phase TEFC motors are standard. The motor mounting bracket can be adjusted to ensure proper belt tension and alignment. V-belt and pulleys can be selected to suit various static pressure and cfm required. 1-phase direct
driven blowers can be provided upon request.
FILTERS
Standard flat filter are 1" washable type. The filter media is constructed of 75% arrestance efficiency synthetic fiber.
